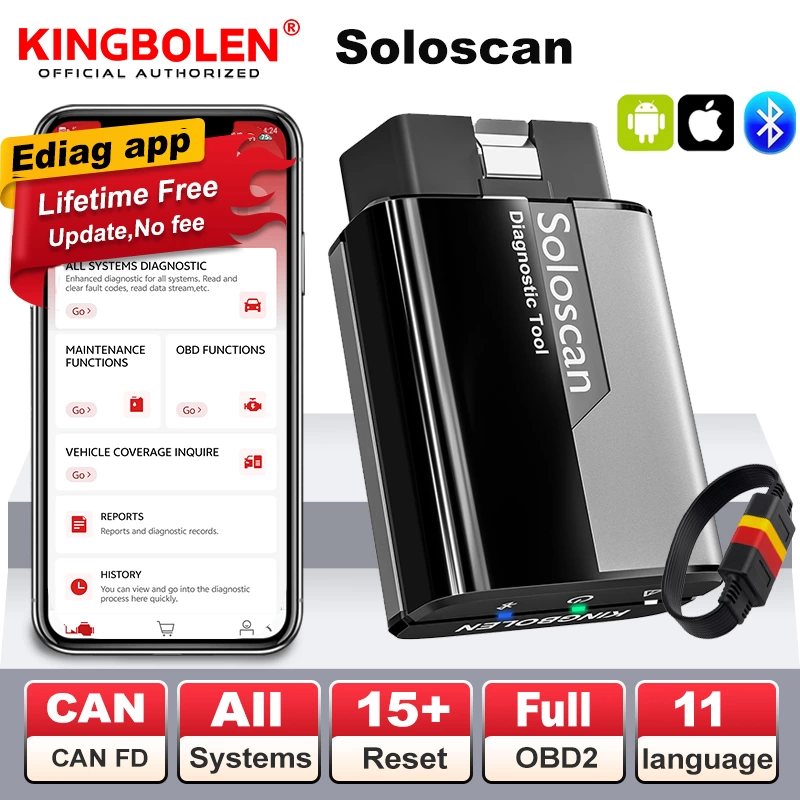

AutoRead | Soloscan Bi-Directional Scanner | All Systems, 20+ Resets & Lifetime Free Updates

New BT scanner for DIY user, it is same as the X431 Elite scanner.

SOLOSCAN is an innovative diagnostic tool. As a pocket-sized diagnostic device, it can turn a smartphone into a smart car scanning diagnostic tool. SOLOSCAN integrates multiple functions, connects to the car's OBD port, and performs diagnostic scanning through the EDIAG App to accurately locate vehicle faults and diagnose vehicle maintenance problems.

Lifetime free to update:

Different from BT scanners such as Thinkdiag Ediag mini, Soloscan can enjoy lifetime free update service, which can update all supported car software and reset and other diagnostic software.

25+languages support：

English, French, Spanish, German, Italian, Portuguese, Japanese, Russian, Polish, Traditional Chinese, Turkish, Greek, Korean, Hungarian, Dutch, Vietnamese, Arabic, Persian, Khmer, Lao, Burmese, Thai

Full system diagnostics：

1. Support all vehicles of more than 98% brands 2. Comprehensive system scan

Get full OBDII data

1, used as an OBDII reader and performs all OBDII test modes, able to access important vehicle information
2, covers vehicles supporting OBDII/EOBD protocol after 1996

20+ Resets Function:

Lifetime free to update the 15 reset software and 112 cars software,.
oil reset——Oil service reset
SAS——Body stability system
ABS——Anti-lock braking system
ETS——Electronic throttle control system
BLEED——Exhaust process of automobile braking system
BRAKE——Brake system
IMMO——Automobile anti-theft device
INJEC——Fuel injection system

Active test:

1. Test the actuator. The decoder can be used to send instructions to the actuator through the vehicle APP and execute the corresponding actions. For example, the injector sprays oil, the throttle opens, the radiator fan runs, etc

ECU Coding:

which enable you to directly communicate with the OEM server and access the online data to identify replaced modules to ensure smooth information communication, activate hidden functions, and adjust the vehicle settings

What is the difference of Benz, Audi ,BMW, GM those 4 versions?

The difference is : Different versions support different car brands，such as Benz version only supports Benz Maybach SPRINTER this 3 car Brands.

if you buy the Benz version, you can do all system advanced diagnosis (ECU coding,key programming,Flash Refresh Hidden, oil reset,ABS reset and other 30 resets
functions........) in the Benz Maybach SPRINTER car.

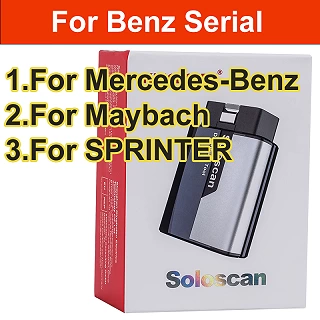

1.For Benz version:

Support Car brand:
1.For Benz
2.For Maybach
3.For SPRINTER

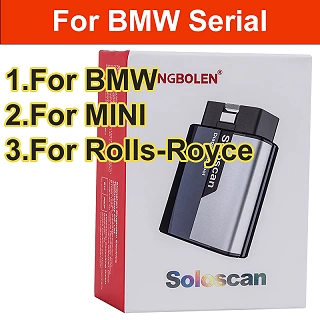

2.For BMW version：

Support Car Brand
1.For BMW
2.For mini
3.For Rolls Royce

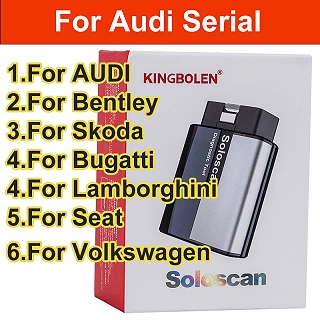

3.For Audi version：

Support Car brand:
1.For Volkswagen
2.For Audi,
3.For Bentley
4.For Skoda
5.For Bugatti,
6. For Lamborghini
7.For Seat
8.For Volkswagen Business

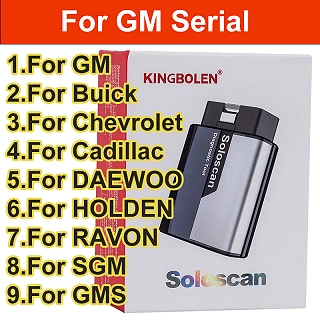

4.For GM version:

Support Car brand:
1.For GM
2.For Buick
3.For Chevrolet
4.For Cadillac
5.For DAEWOO
6.For HOLDEN
7.For RAVON
8.For SGM
9.For GMS

All Cars Lifetime Free Full System Diagnostic

The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis.The application performsfunctional tests, retrieves vehicle diagnostic information, such as trouble and event codes and live data for various vehicle control systems, such as ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper Systemetc.

Bi-Directional Test

Test the actuator. The decoder can be used to send instructions to the actuator through the vehicle APP and execute the corresponding actions. For example, the injector sprays oil, the throttle opens, the radiator fan runs, etc

Soloscan supports 20+ Reset functions:

1. Oil Lamp Reset Service：
allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2. EPB Service:
it is important in the maintenance of electronic braking system's safety and efficiency.

3. BAT Battery Service：
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4. DPF Service:
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5. SAS Service：
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6. TPMS Service:
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7. IMMO Key Programming：
The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8. ABS Bleeding:
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system

9. Sunroof Reset：
The sunroof memory generally needs to be reset when the vehicle’s battery is replaced or the car dies

10. Suspension Reset：
Try reset electronic suspension air ride with the massage system close all doors koeo flip through measage system go to suspension reset or on off

11. Gearbox Reset：
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programing method of the TCU / ECU drive the car.

12. AFS Headlamp Reset:
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel

13. Injector Coding：
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off

14. Throttle Adaptation:
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair

15. Gear Learning：
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running

more.....

Lifetime free All 10 Mode OBDII/EOBD Functions

Supported models: compatible with all models supporting OBD II protocol after 1996

supporting agreement: ISO 14230-4(KWP2000)/IOS 15765-4(CAN)/ISO 9141-2(IOS)/ISO14229(UDS)/SAEJ 1850(VPW&PWM)"

Mode 1: Read live data stream
Mode 2: Read freeze frame data
Mode 3: Read DTCs(diagnostic trouble codes)
Mode 4: Clear dtcs
Mode 5: Oxygen sensor monitoring
Mode 6: System monitoring
Mode 7: Read pending DTCs
Mode 8: Control operation of on-board system
Mode 9: Read vehicle information
Mode 10: Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.

Auto Scan Car VIN Code

Soloscan can automatically scan the car's information, include VIN number, release year, model and engine type.Save your time

Read Live Data Stream

Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

Support Vehicles Diagnostic Report

1. Generate diagnostic report in Ediag APP.
2. Download the diagnosis report and transfer it to the computer to print the diagnosis report.
3. Share your diagnosis report with your partner or car owner.

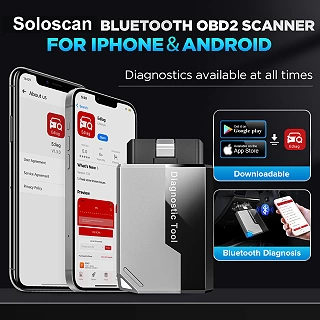

Support Mobile Phone & Tablet Computer

Android: 4.0, IOS: 9.0

KINGBOKEN Ediag Elite OBD2 Diagnostic Tool is suitable for Mobile phones, tablet computer that meet the above version information. When the adapter is connected to the car, you only need to detect and diagnose your vehicle through the mobile phone's Bluetooth 4.2 and APP. It is suitable for most DIY car owners and maintenance and repair car stores on the market.

How to use KINGBOLEN Soloscan ?

1. Download and install the APP ”Ediag app” in Google Play or your smartphone and sign up for a new account And log in.

2. Activate the device in APP” Ediag app”, binding serial number;

3. Plug the KINGBOLEN Soloscan dongle into the vehicle’s 16 pin OBD2 Data Link Connector and then turn on your vehicle.

4. Tap Me/Setting button of your device to bluetooth pair the Ediag Elite with your device.

5. Start to diagnose your car.
